Winora Yucatan X8 - High quartz matt
Umiestnenie
Frame and more
- Brand: Winora
- rám: WINORA hliník, 27.5"
- Tvar rámu: 66_6
- Model name: Yucatan X8
- povolená celková hmotnost: 130
- Výška rámu: 55
- vidlice: SR Suntour XCM32 ATB DS LO, ocelová pružina, 100mm
- dynamo: přes baterii systému
- blatníky: Curana Apollo 70
- světlomet: Herrmans CL3, 30 lux
- hlavové složení: WINORA AX1AH7
- Zámek: Abus lze dovybavit přes Plus systém
- zadní světlo: AXA Juno E-Bike, 6-12V
Gear shift and brakes
- Řazení: Shimano Acera M3020, 8 Rychlosti, Altus M315, rapidfire
- řetěz: KMC X8 8s
- Brakes: Shimano BR-MT200, 2 pistons, resin pad, 180 mm, 180mm
- brzdová páčka: Shimano BL-MT201
- chain guide: Nylon přímá montáž
- Rameno kliky: Winora kovaný
Propulsion
- motor: Yamaha PW-S2, 250W, 25km/h, 75Nm
- nabíječka: Fast Charger 4A
- baterie: Yamaha InTube 720Wh
- Battery capacity: 720
- displej: Yamaha Side Switch
- Engine manufacturer: Yamaha
- Engine torque: 75
Wheels and wheel components
- ráfky: Schürmann Yak25, nýtovaný, ráfek s dutinou, hliník
- nosič: WINORA system carrier, HD, MIK
Handlebar and saddle
- sedlo: Selle Royal
- řídítka: WINORA Ergoriser, oversize, 720 mm
- gripy: Velo Ergogriff
Geometry
- Seat tube length: 550
- Seat tube angle: 74
- Head tube length: 170
- Head tube angle: 68
- Chain stay length: 465
- Bottom bracket drop: 60
- Reach: 462

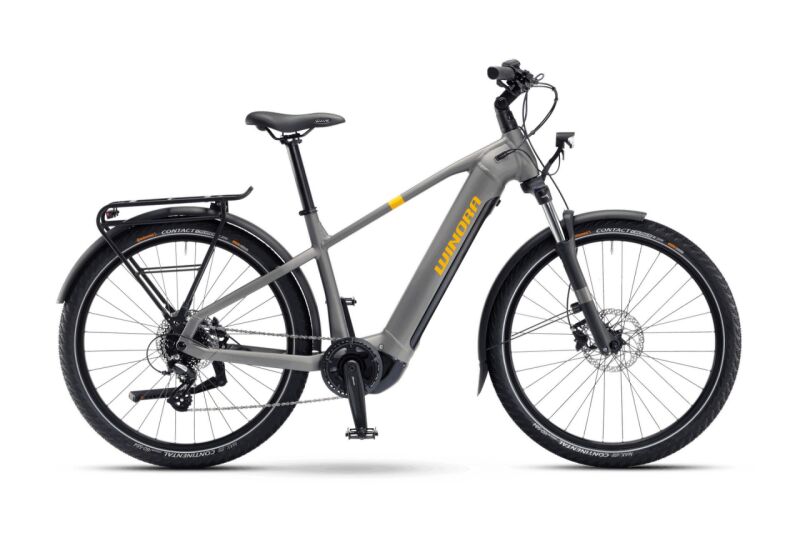

* The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike is not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems due to the Corona pandemic.
